UKSOL Plug-In Solar Pro Max 2 Panel Hybrid Mount Kit 1260W

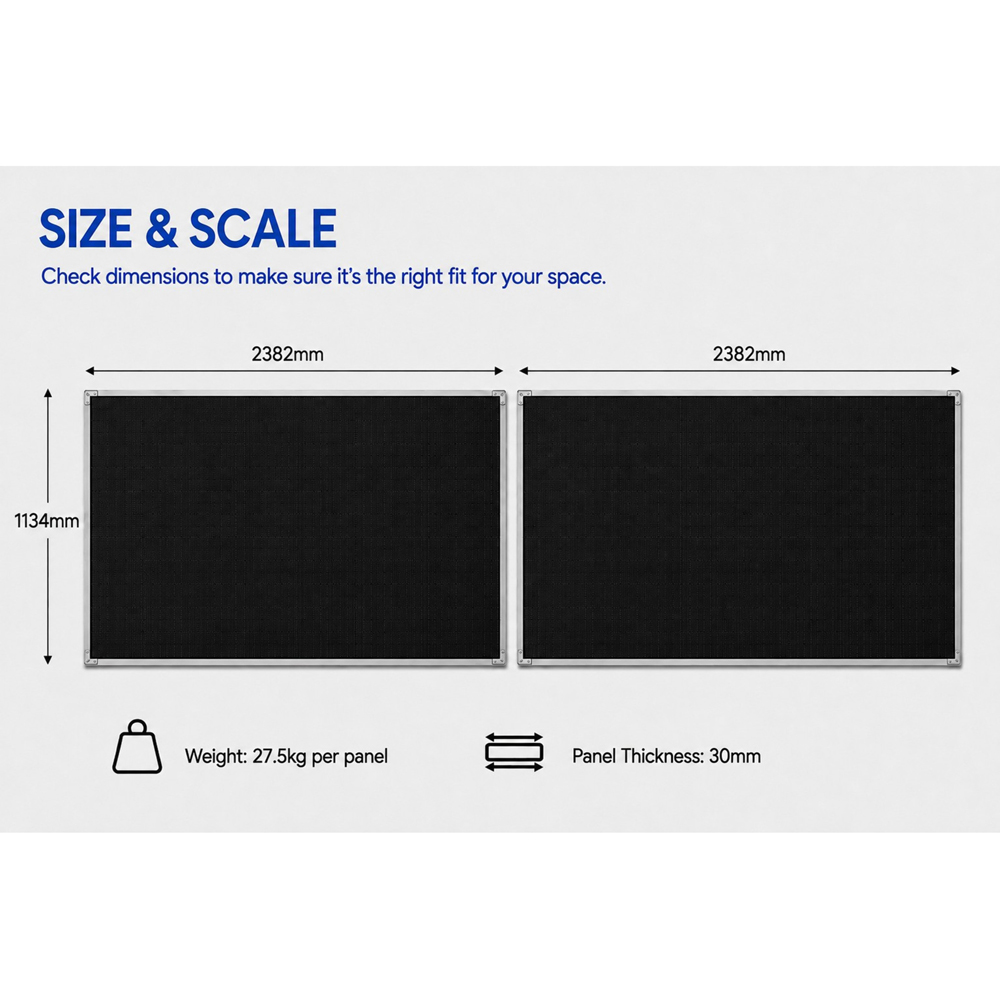

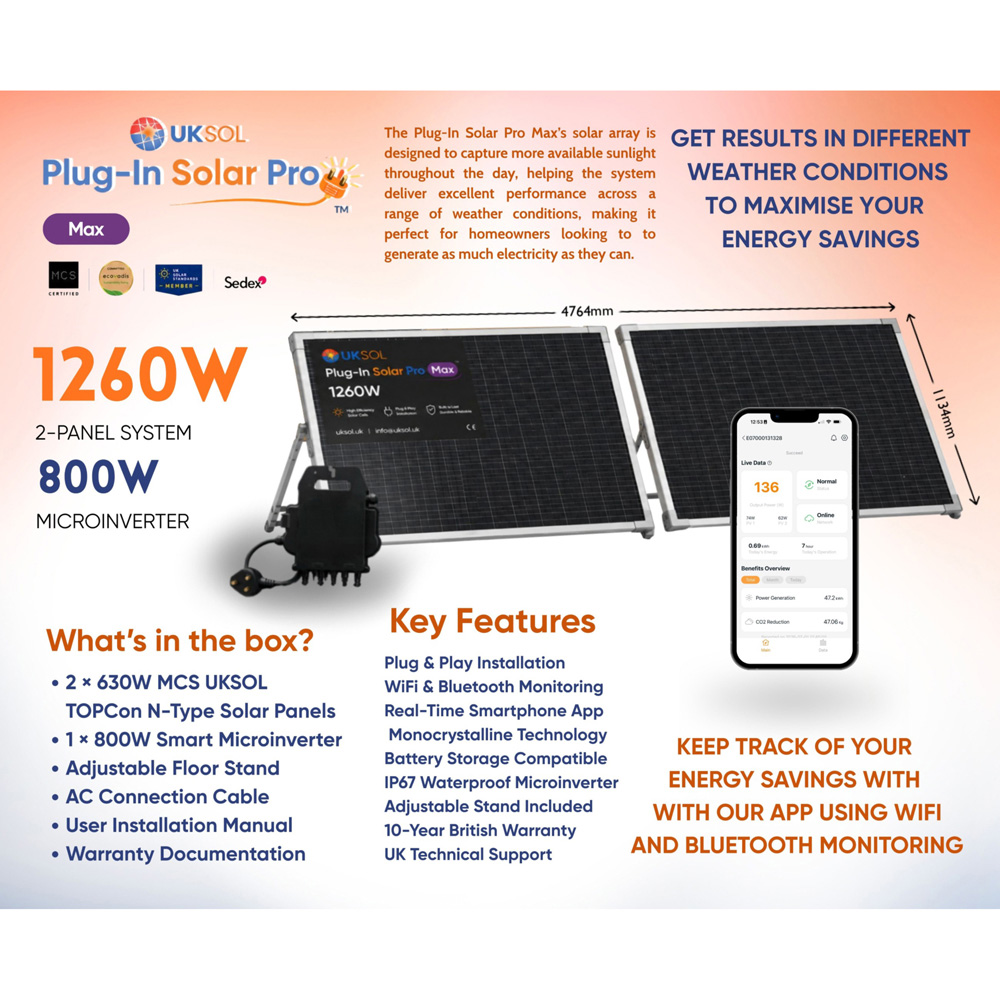

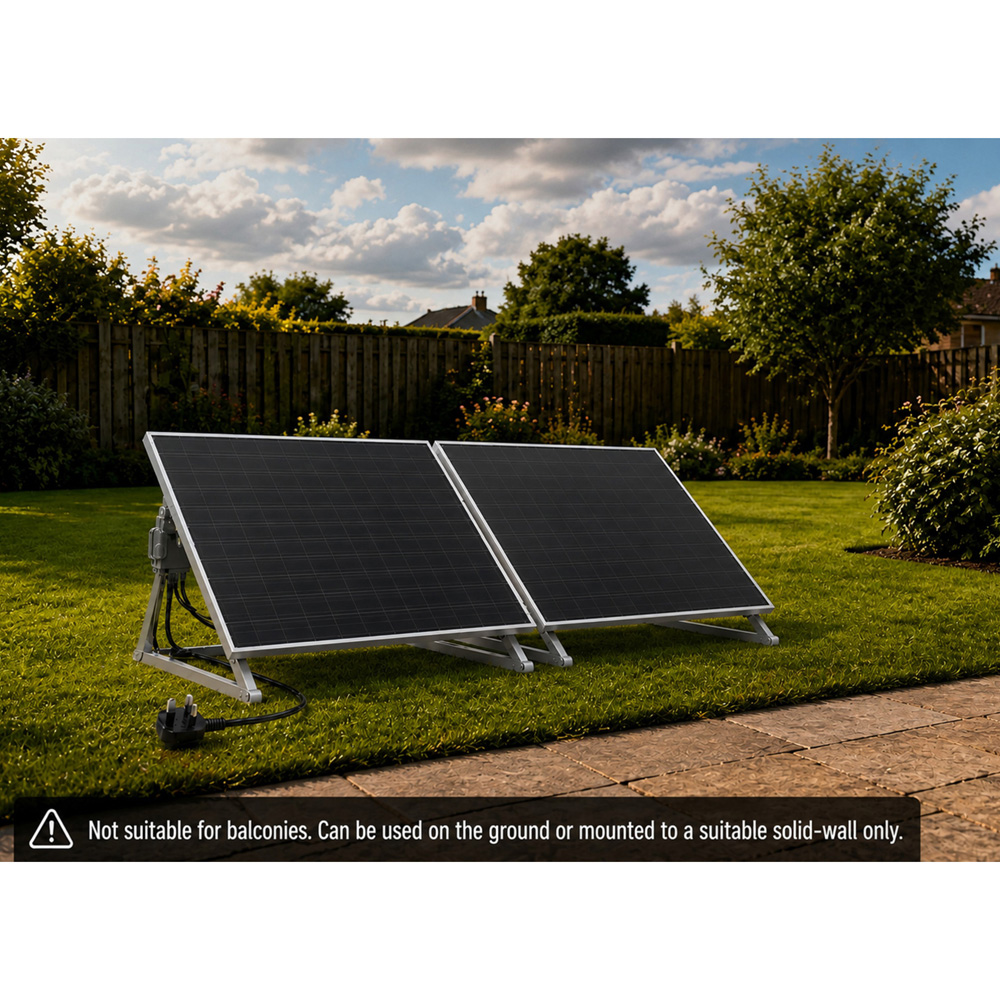

Start harnessing renewable energy effortlessly with the UKSOL Plug-In Solar Pro Max 2 Panel Hybrid Mount Kit 1260W. This hybrid mount kit blends two powerful 630W bifacial solar panels, an 800W smart microinverter and adjustable mounting frames for simple home installation. You'll enjoy reliable performance in all weather thanks to oversized panel capacity, robust glass-glass construction and anodised aluminium frames, while the plug-and-play design lets you monitor your system using Wi-Fi or Bluetooth. Built for year-round outdoor use and backed by a warranty, this kit delivers a straightforward way to reduce your reliance on the grid and start generating your own solar power. Please note: For optimum performance, position the panels facing south where possible, ideally at approximately a 35° angle, and avoid shading. What's Included: 2 x 630W TOPCon N-Type solar panels (2382 x 1134 x 30mm per panel), 1 x 800W smart microinverter, adjustable hybrid mounting frame, DC cable, 4m AC cable, and installation guidance. This product is not suitable for use on balconies. Can be used on the ground (ballasts required-not included) or mounted to a suitable wall only. Disclaimers: Do not use extension leads or coiled cable reels – connect the system directly to a suitable outdoor UK socket-outlet. Extension leads, adapters and coiled cable reels may not be suitable for continuous use and can increase the risk of overheating or damage. Electrical installation suitability – plug-in solar kits must only be connected to a suitable UK socket-outlet on an appropriate final circuit. The electrical installation must be in good condition and have suitable circuit protection and residual-current protection. Electrical assessment required where uncertain – if the socket, final circuit, consumer unit, protective devices, wiring, earthing or general condition of the electrical installation is damaged, unclear, unsuitable or unknown, have it assessed by a qualified electrician before connecting the system. Changes to household electrics – any alterations to fixed household wiring, circuit protection, socket-outlets or the consumer unit must be carried out by a qualified electrician. Age of the electrical installation – there is no specific maximum age for the property or household wiring. Suitability depends on the condition and adequacy of the electrical installation. Specifications: Solar Panels: Number of Panels: 2. Peak Power (PMax): 1260W total / 630W per panel. Module Efficiency: 23.3%. Cell Type: TOPCon N-Type Monocrystalline. Cell Configuration: 132 cells per panel / 264 total. Panel Type: Bifacial glass-glass. Dimensions: 2382 x 1134 x 30mm per panel. Combined Width: 4764mm. Weight: 34kg per panel / 68kg panels only. Frame: 30mm anodised aluminium alloy. Frame Colour: Silver. Front Glass: 2.0mm high-transmission AR-coated strengthened glass. Back Glass: 2.0mm heat-strengthened glass (white grid glass). Junction Box Rating: IP68. Maximum System Voltage: 1500V DC. Maximum Fuse Rating: 35A. Operating Temperature: -40°C to +85°C. Fire Rating: Class C. Panel Electrical Specifications: Voltage at Maximum Power (Vmp): 41.3V. Current at Maximum Power (Imp): 15.26A. Open Circuit Voltage (Voc): 49.4V. Short Circuit Current (Isc): 16.26A. Power Tolerance: 0 to +5W. Smart Microinverter Specifications: Microinverter Rating: 800W. Maximum Continuous Output: 799VA. MPPT Channels: 2 independent MPPTs. Recommended Solar Module Range: 300W–730W. Peak Efficiency: 96.7%. Communication: Built-in Wi-Fi and Bluetooth. Protection Rating: IP67. AC Output Voltage: 230V AC. AC Output Frequency: 50Hz. Maximum Output Current: 3.5A. Operating Temperature: -40°C to +65°C. Monitoring: Smartphone monitoring app. Warranty: 10-Year Warranty.
