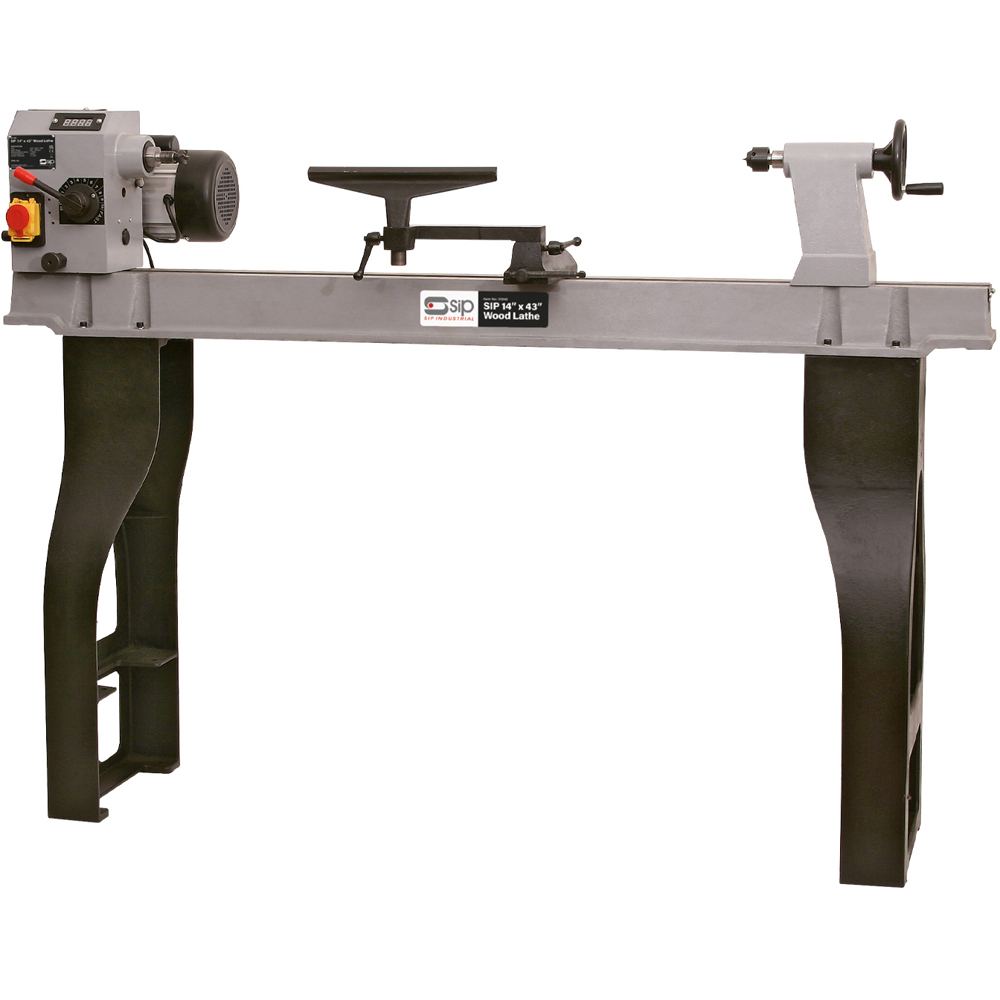

SIP Cast Iron Swivel Head Wood Lathe 14 x 43 inch

0763932
£914.00
£914.00
Delivery
13  in stock
Click & Collect Unavailable
Online exclusive items are only available for home delivery
View stock levels at a store nearby

Product Information

  • Heavy-duty cast iron legs
  • Features 350mm maximum turning diameter
  • Heavy-duty cast iron legs and lathe bed

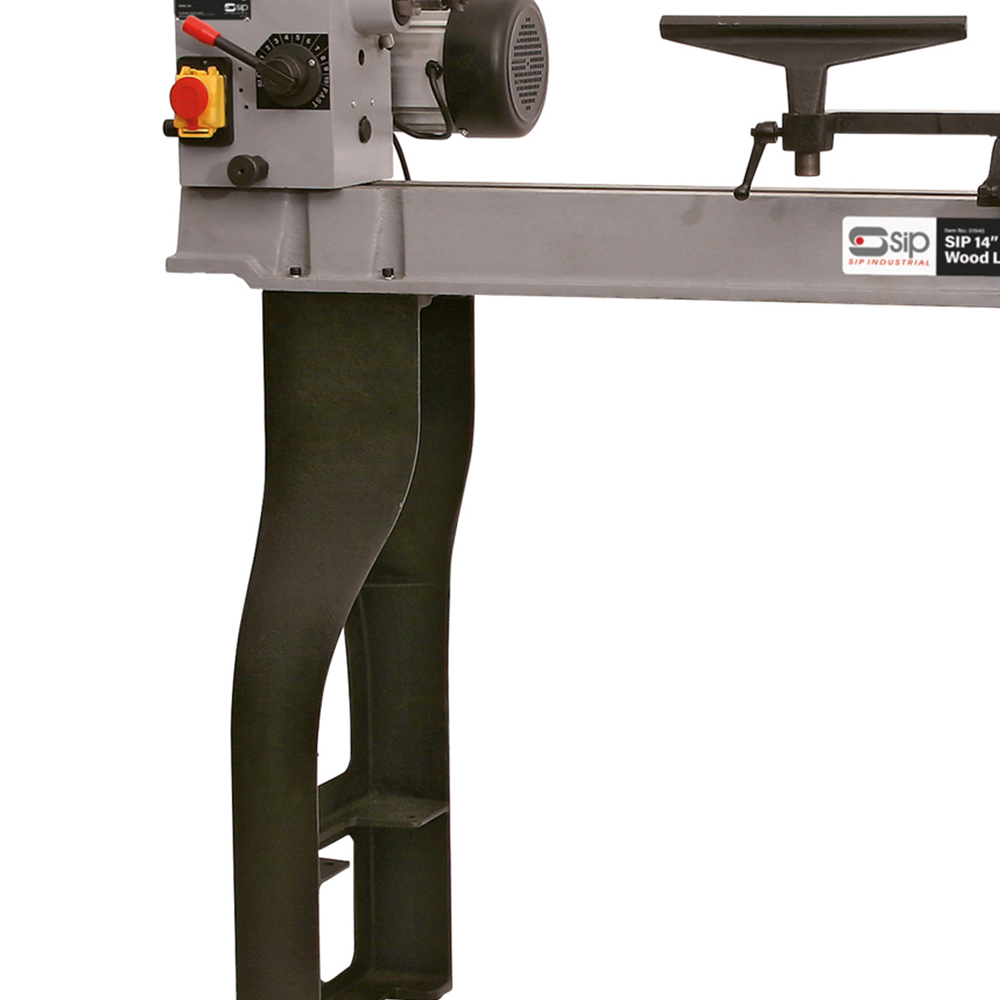

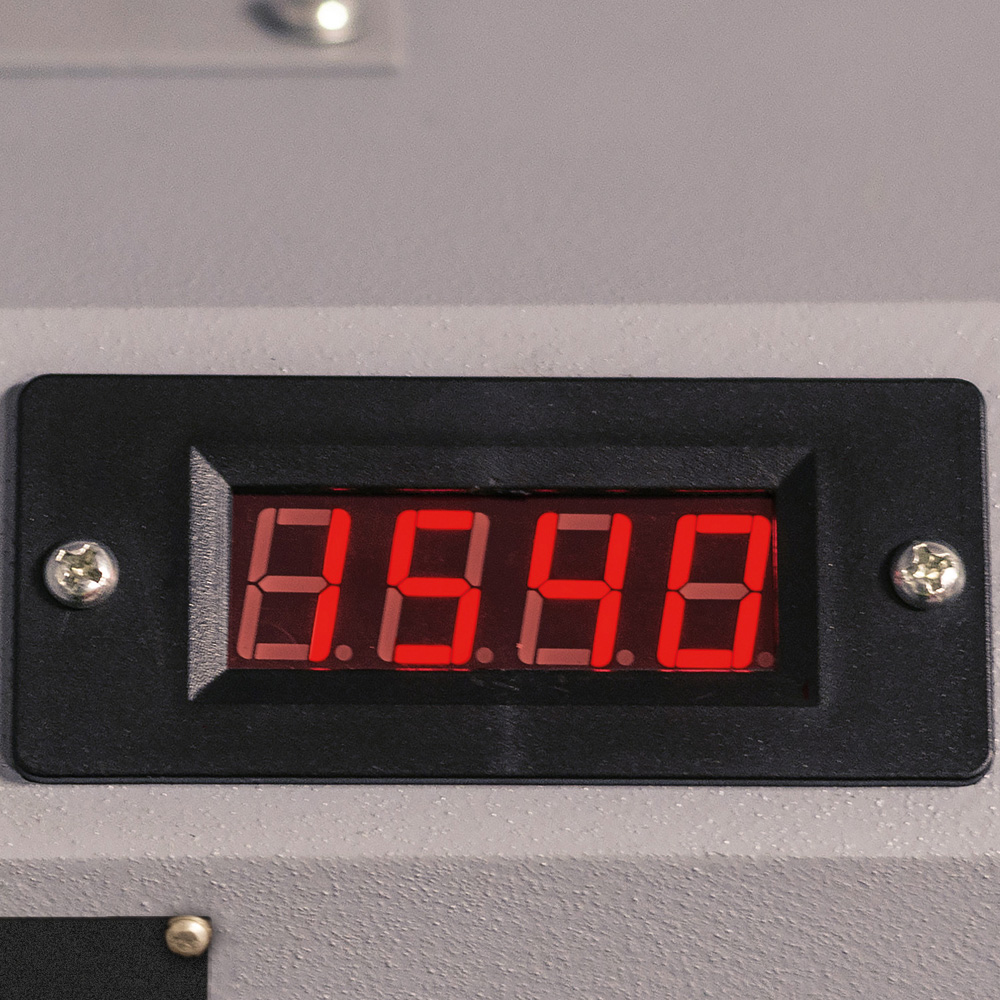

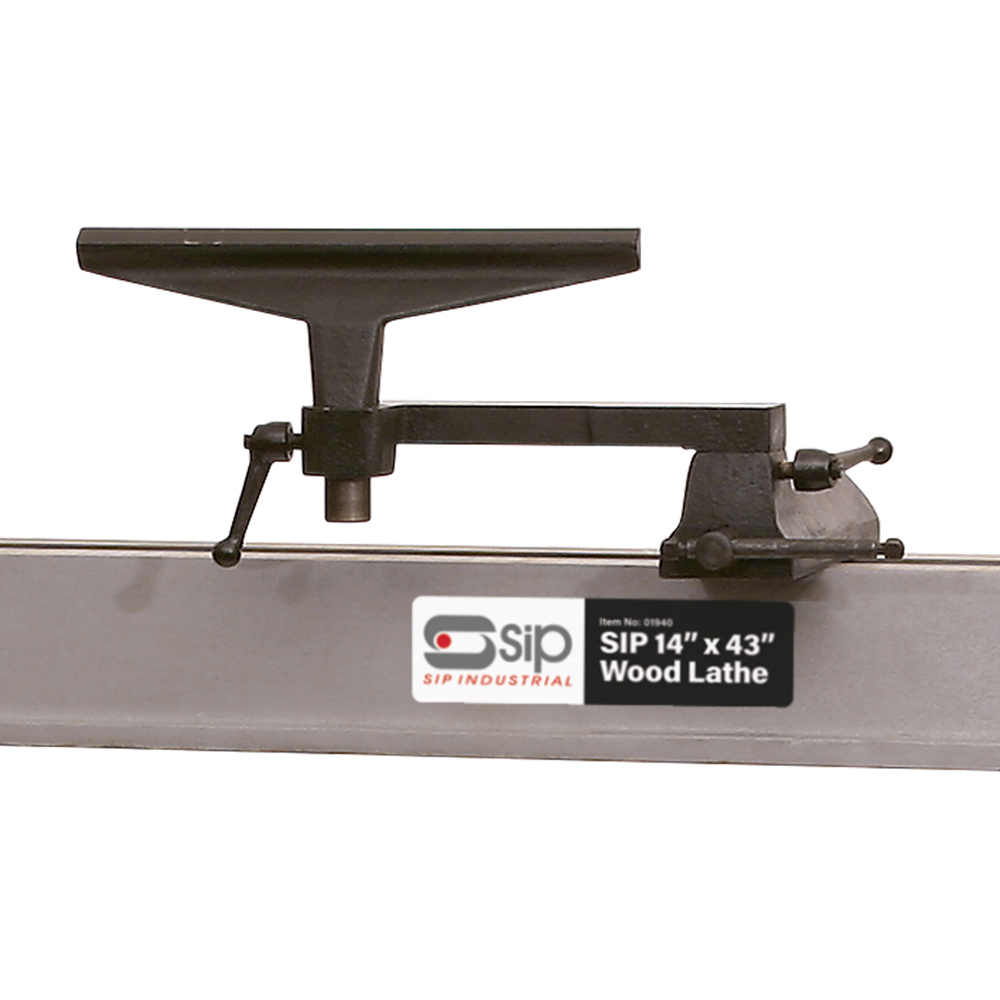

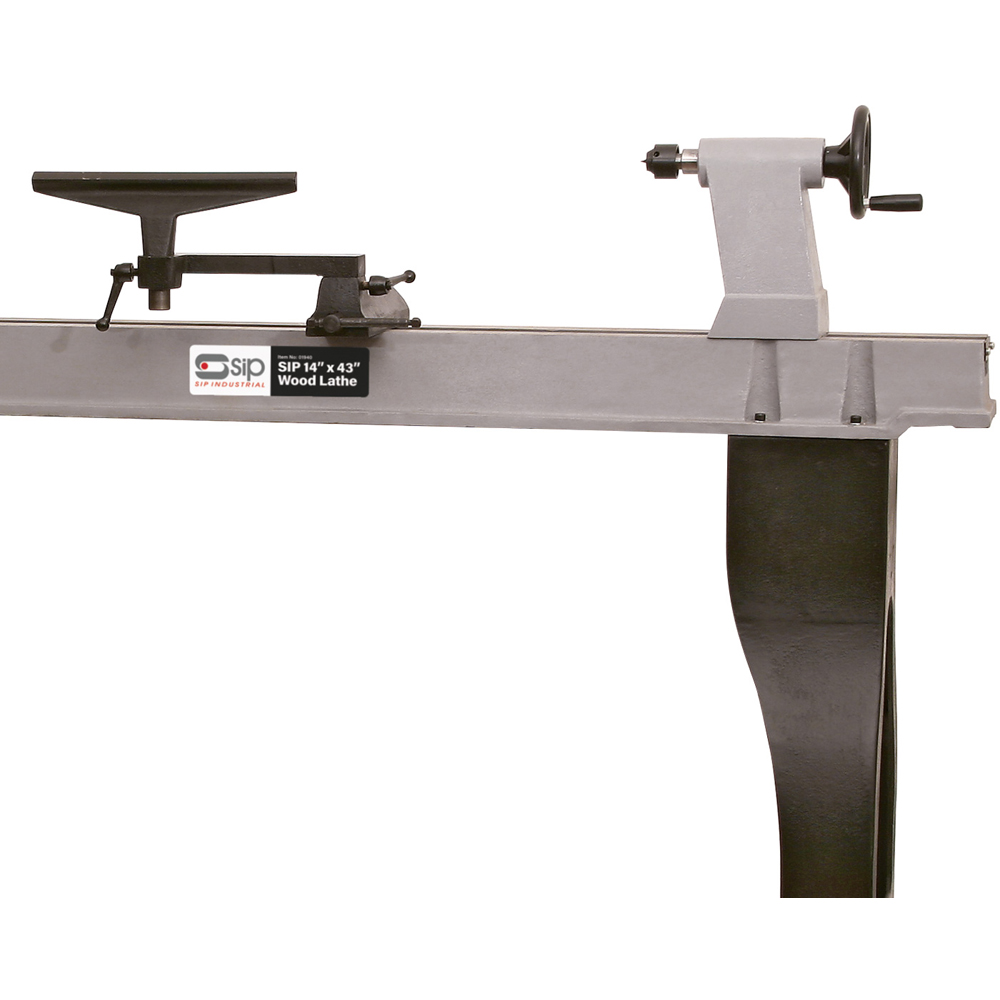

The SIP 14 x 43 inch Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill, and sand workpieces to the desired specification. For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock, and tailstock are also manufactured to a professional finish from heavy-duty cast iron. The headstock has an MT1 taper and the tailstock an MT2 taper, alongside a variable speed motor which runs between 500 RPM and 2000 RPM. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control. Supplied with tool rest, 6-inch faceplate, drive and tailstock centres. Applications and uses: perfect for turning furniture legs, staircase spindles, and bespoke woodwork items. Accurately turns, shapes, drills, and sands workpieces to the desired specification. Suitable for soft and hardwoods. 3/4 inch x 16 TPI spindle thread size: allows the use of various turning attachments. 350 mm max. turning diameter (1100 mm between centres): enables a variety of woodwork projects and jobs. 360° swivel headstock with 4 lock positions: allows for outboard turning of larger wood materials. Heavy-duty cast iron legs: prevent flex and movement of the bed and enhance stability when outboard turning. Heavy-duty cast iron lathe bed: ensures greater turning stability and accuracy. Cast iron MT1 headstock and MT2 tailstock: for an assured hold to the workpiece when turning. Digital speedometer display: provides an accurate readout of headstock spindle speed. Fitted with a hollow tailstock for long hole boring, offers added versatility for professional applications. SIP 2-year standard silver warranty.
Brand:
SIP
Type:
Wood Lathes
Colour:
Grey
Power:
750W
Pack Qty:
1
Size:
160 x 116 x 45cm
Customer Assembly Required:
Yes
Height:
160.00
Material:
metal, plastic
Width:
116.00
Depth:
45.00
Model No:
01940
Product Code:
0763932

Free Returns

Return this product for free within 14 days and we'll gladly refund or exchange it for you. This product cannot be returned in store but we can organise a collection for you.

View returns information

Shipped by the supplier

This product is only available online and sent directly to you from our supplier’s warehouse.

Delivery timescales may vary and will be accurately shown at checkout after entering your address.

Some postcode restrictions may apply, which can be found in the product information or after entering your address at checkout.

Our 14-day free returns policy applies to products shipped by our supplier but they cannot be returned in store.
