- Die-cast aluminium construction
- Clamps frames tightly
- Adjustable strap length

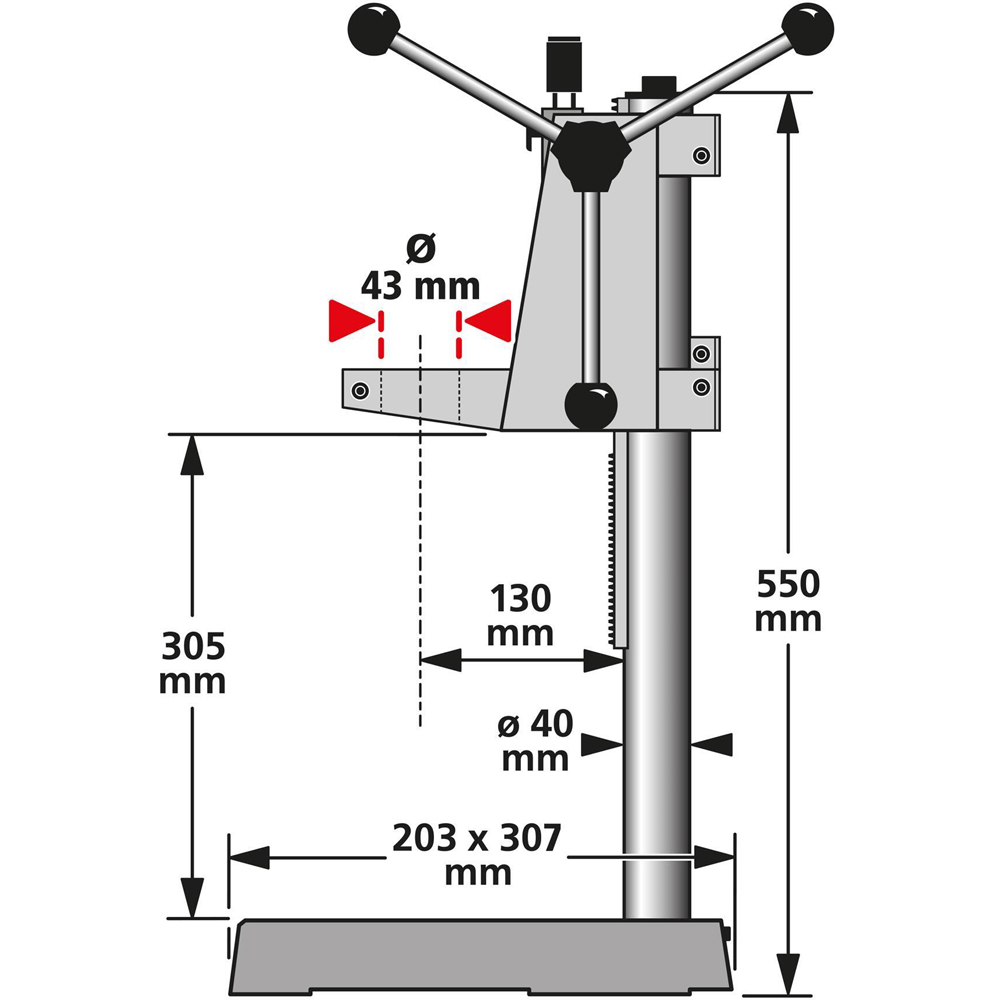

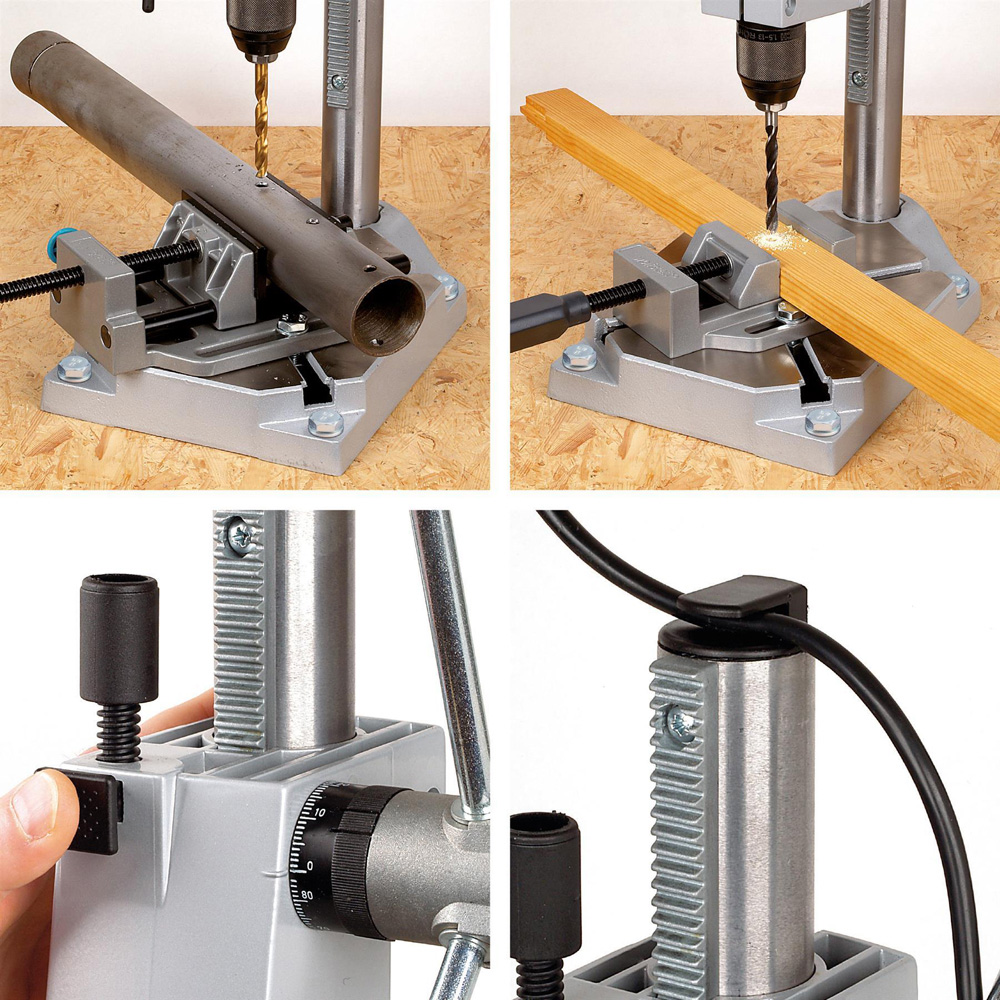

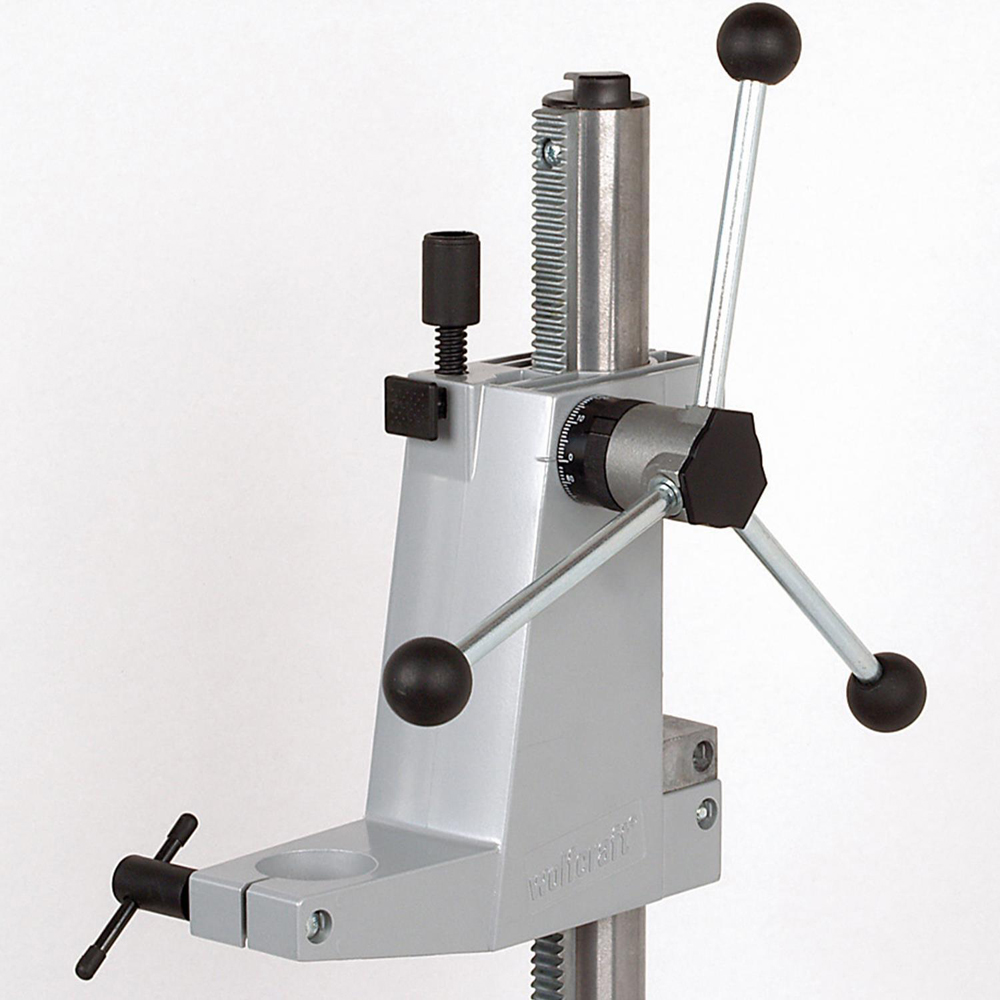

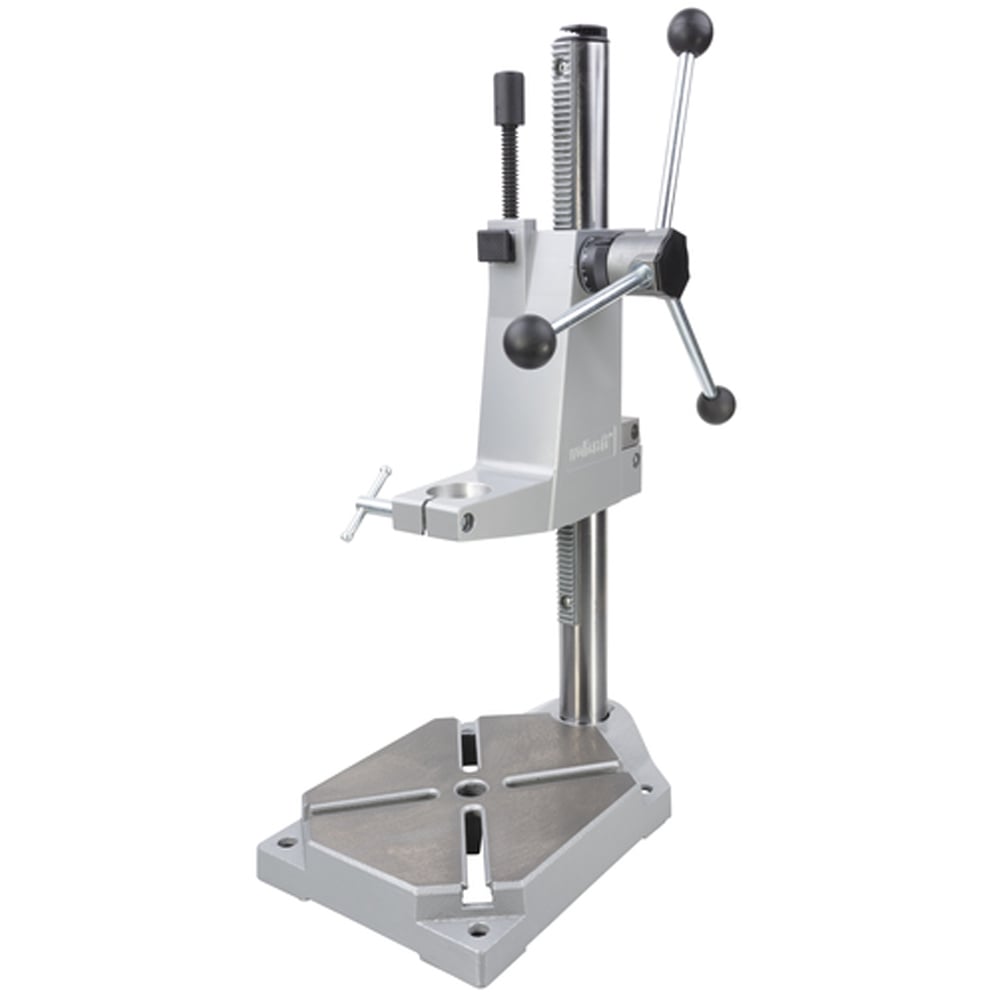

With the Wolfcraft drill stand, you drill your workpieces in a controlled manner at the desired point and at the pre-set depth. The 40mm round column, with a 420 mm toothed rack screwed on, ensures straight drilling without twisting. The Euronorm collar with its 43 mm diameter makes the drill clamp compatible with any commercially available power drill. Using the depth stop with the quick adjuster and scale ring, you can set the drilling depth precisely to the millimetre. The rack-and-pinion drive offers convenient, continuously adjustable, and exact height adjustment of the operating unit including the power drill. For comfortable lowering, use the 3-arm feed lever. When you move the machine back, the return spring assists you. Even the smallest details have been thought through, for example, a cable holder ensures the correct routing of the power cable of the power drill. In the clamping grooves, you can attach vices that firmly hold your workpiece in place. A clever helper that no workshop can do without. Product dimensions (W x D x H): 203 x 307 x 570mm. Depth: 130mm. Material: Die-cast aluminium. Working stroke max: 80mm. With Euronorm collar: 43mm. Integrated return spring. With cable holder. Milled worktop with clamping grooves for fastening clamping blocks or vices. Box Includes: Wolfcraft Drill Stand.
-
Brand:
-
Wolfcraft
-
Type:
-
Drill Stands
-
Colour:
-
Multi
-
Pack Qty:
-
1
-
Size:
-
60 x 25 x 80cm
-
Customer Assembly Required:
-
Yes
-
Height:
-
60.00
-
Material:
-
Die-cast Aluminium
-
Width:
-
25.00
-
Depth:
-
80.00
-
Model No:
-
R211497
-
Product Code:
-
0748672
