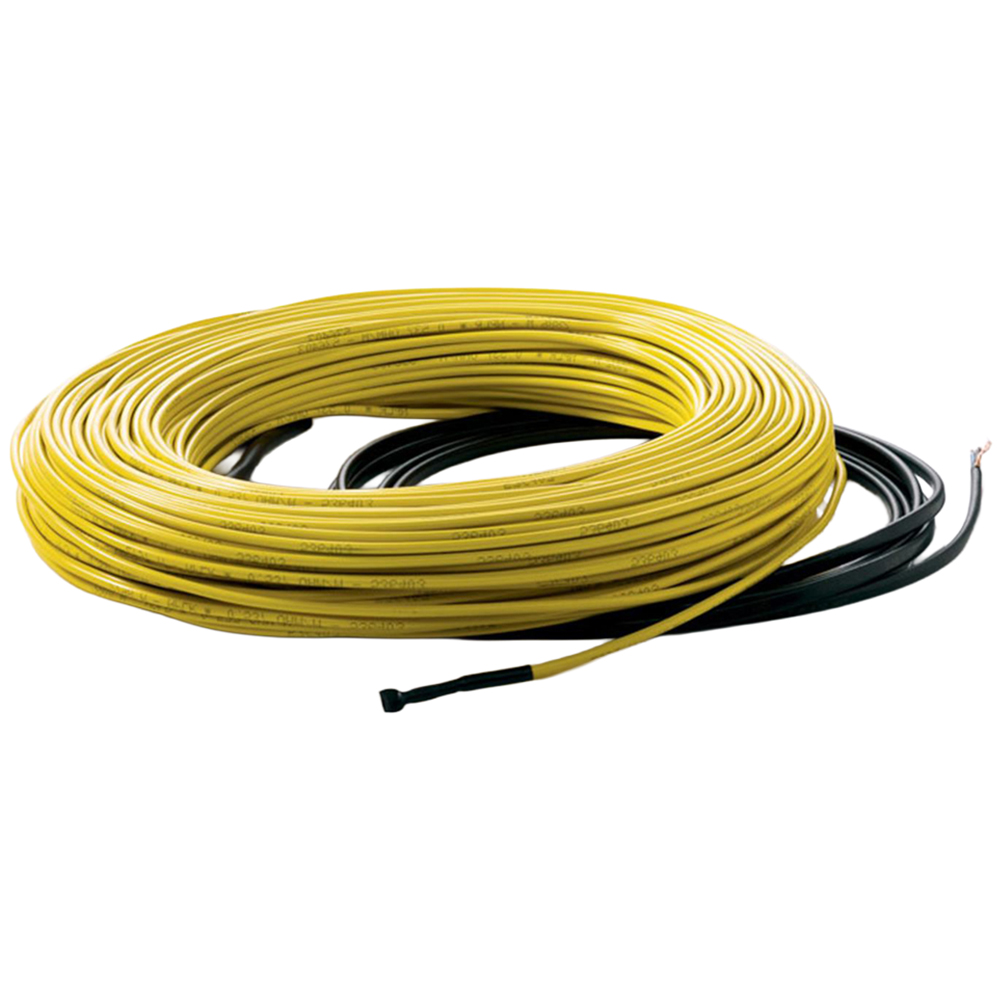

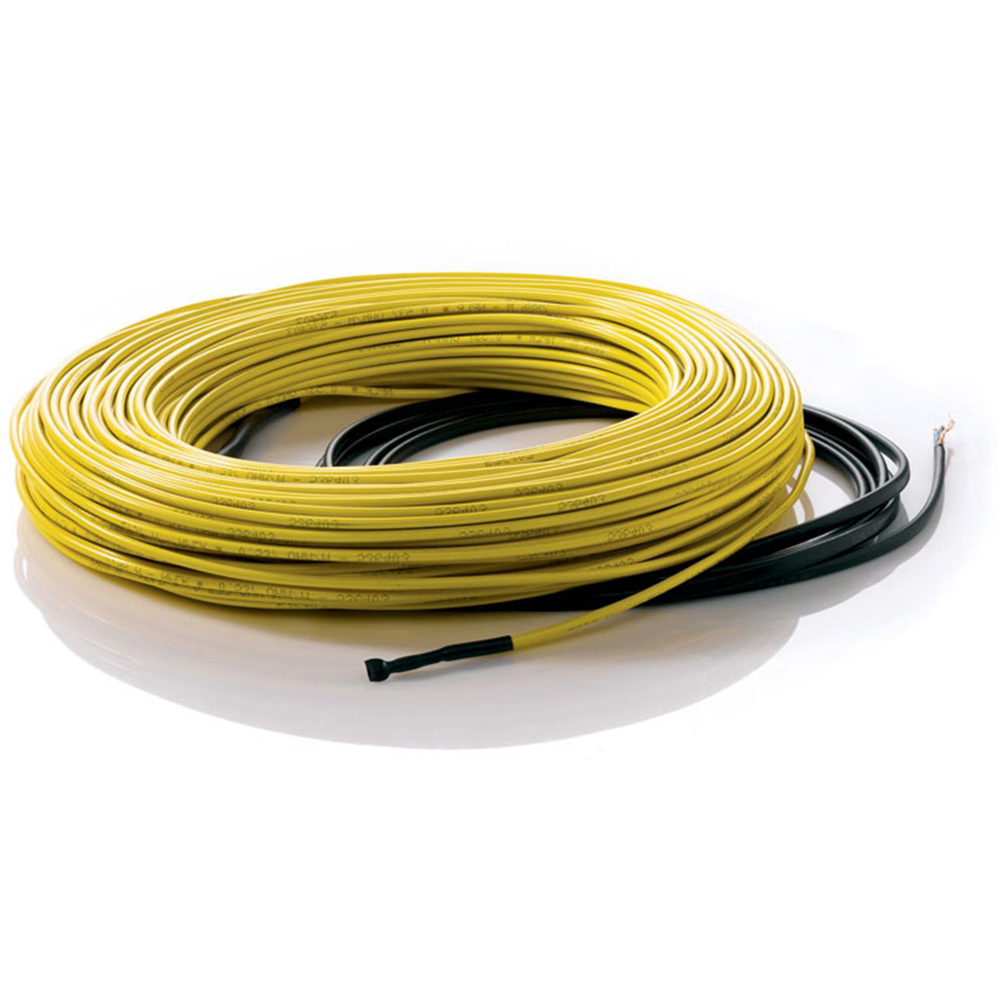

Veria Flexicable 10 Nordic Twin Conductor Underfloor Heating Cable 900W 90m

Veria Flexicable 10 has a running power of 10 W per meter, which combined with the low installation height of only 4mm makes Veria Flexicable 10 perfect for renovating existing floors. The cable can be laid directly on the substrate and attached most easily using VeriaFix double-sided tape or similar but can also be attached with a glue gun. Note that this product must be installed by an authorized electrician. CE marked in accordance with EN 60335-1 and 60335-2-96. Note: The heating cable can be used for both primary and secondary heating. Depending on your floor construction you are free to choose the output level you need to fulfil your heating requirements. Please follow the guidelines below. The area that a certain cable length covers depends on which output you need, and consequently which centre-to-centre (C-C) distance the cable installation requires. Note that the heating cable must be connected to the power supply by an authorised electrician. Cable thickness: 4mm. Cold tail: 2.3m. Cable shape: Round. Pulling strength: 120Nm. Deformation strength: 600Nm. Volt: 230V. Conductor insulation: FEP. Screen: 100% aluminium screen and Bioconductor. Outer sheath: PVC. Output pr. m: 10W/m at 230V. Cable colour: Yellow. Max. temperature: 80 C. Guidelines for selecting the right output: For concrete floors with carpet, laminate, vinyl, parquet or wooden top flooring max. 60-100W/m² is recommended. For concrete floors with tiles on top max., 150W/m² is recommended. Veria Flexicable can be used with the following thermostats: Veria Control B35/45, Veria Control T45 and Veria Control W35/45.
