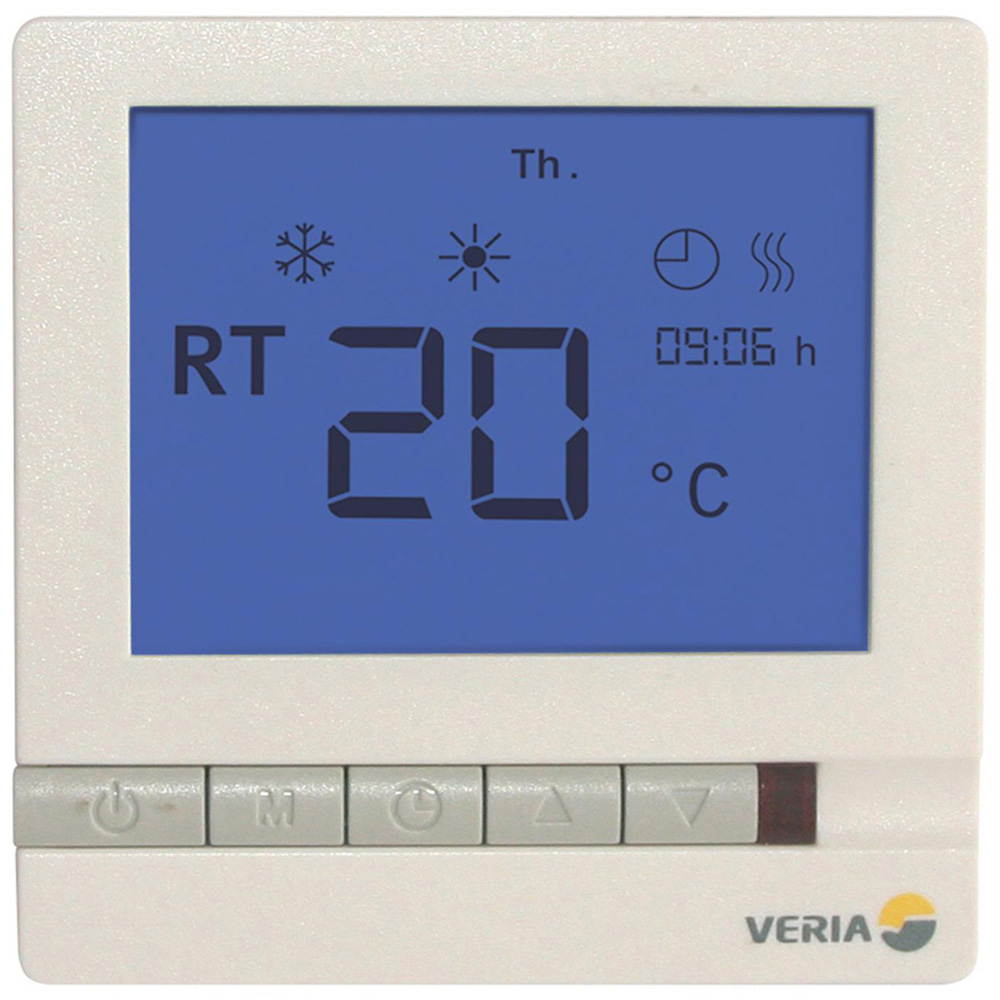

Veria Control T45 Timer Controlled and Programmable Thermostat

Veria Control T45 is a programmable thermostat with a timer that will allow you to regulate the temperature of your underfloor heating in accordance with the temperature of the floor, the air temperature in the room or a combination of these temperatures. The 5 + 2-day mode allows you to program the thermostat to match Your needs. Each day is divided into four individual time zones, each of which allows you to have the right temperature at the right time. The use of timer programming will save you money as the system operates at a certain time of day. Installation and connection: Before installing the thermostat on the wall in the mounting box, open the front panel of the thermostat by gently pressing the latches located at the bottom of the thermostat. Connect the wires according to the diagram (see below) and fix the thermostat in the socket with screws. Check that all connections are correct and reinstall the front. Max. load 13 A - 2,990W at 230V. Operation voltage 180-240 V, 50 Hz. Precision +/-1°C. Sealant rating IP 30. Sensor type NTC. Standby consumption <2 W. Temperature range 5-45°C. Element IP Class 30. Temperature - floor [°C] [Max] 35 °C. Temperature - floor [°C] [Min] 5 °C. Temperature - room [°C] [Max] 45 °C. Temperature - room [°C] [Min] 5°C. Height: 86mm. Width: 86mm. Important Note: The thermostat must be installed by a qualified electrician.
